Contractors
Estimating tools for the systems we supply. Run quantities on any job, and log in to see your pricing built right into each calculator.
Quantity and pricing calculators
Click a tile to open the calculator. Anyone can run quantities; log in to see your pricing.
Qualideck traffic coatings calculatorGallons and kits by system and square footage
Waterproofing and air barrier calculatorRolls, pails and kits for below grade, walls, HRA and polyurea
Pli-Dek decorative waterproofing and concrete coatings calculatorProducts and quantities by Pli-Dek system
Repair mortar calculator and corrosion protectionCubic feet and bags for MAPEI repair mortars, plus Mapeshield I anodes and Mapefer 1KCarbon fiber (FRP)MapeWrap and Carboplate estimates and project review (carbon fiber access)
Joint sealant calculatorGallons, cartridges, sausages and pails
GE silicone air barriers and waterproofing calculatorElemax silicone air barrier system, Optic 3101 and SilShield 3100
De Neef crack injection calculatorPolyurethane injection resins, catalyst, packers, Washing Agent and job accessoriesNew for approved contractorsProject submittals, done for youPick the products on your job. We'll build one PDF with an Altitude cover letter, an index and the current data sheet and SDS for every product.1 Your company and project2 Check off products3 Download the packageBuild a submittal package Qualideck by APT Qualideck traffic coatings calculator

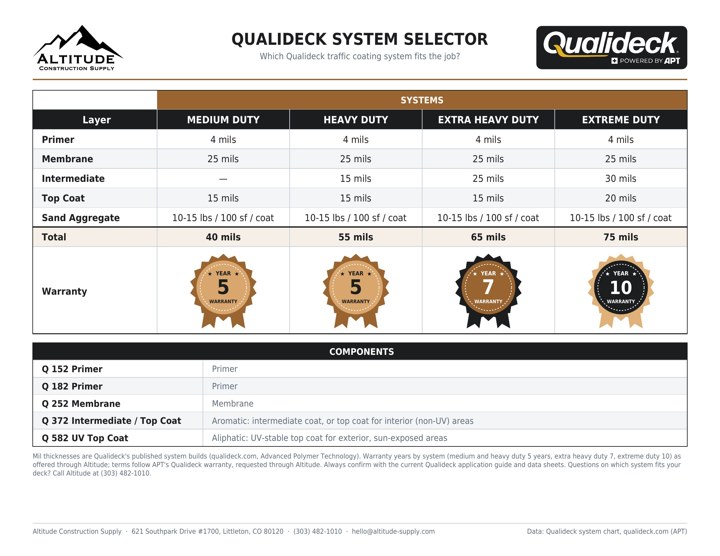

Pick a Qualideck system and enter the deck area. We'll show the gallons of each coat and how many kits to order.
Warranty: 5-year material or 5-year joint & several
Only Light gray and Dark gray are stocked items. Charcoal, Black and other colors are special order.
Sand is broadcast into the wet coat and back-rolled to encapsulate it.
Extra Qualipur 152 primer and 252 base coat over cracks and joints (pre-striping) and up walls and columns (cove coating).
Group the deck coating with the other products on the job, then add everything to your cart at once.
| Coat | Product | Thickness | Coverage |
|---|---|---|---|
| Primer | Qualipur 152 Primer | 4 mils | 250 sq ft/gal |
| Base coat | Qualipur 252 Base Coat | 25 mils | 64 sq ft/gal |
| Intermediate coat | Qualipur 372 AR Intermediate Coat | 15 mils | 106 sq ft/gal |
| Topcoat | Qualipur 582 AL Topcoat | 15 mils | 106 sq ft/gal |
Total system thickness 55 mils DFT (base, intermediate and topcoat).
Qualideck material
Choose a system and enter the square footage to see gallons and kits.
Qualideck documents
Technical
Documents are APT's current Qualideck literature and download as PDFs.
Estimates only. Coverage rates are theoretical at the listed dry film thickness. Surface profile, texture, slope and application method all affect actual usage. Confirm with the Qualideck technical data sheets before ordering.
Use the 582 topcoat for decks exposed to sunlight and 372 for non-UV exposures, such as covered parking levels.
Need colors, availability or help choosing a system? Talk to our team.

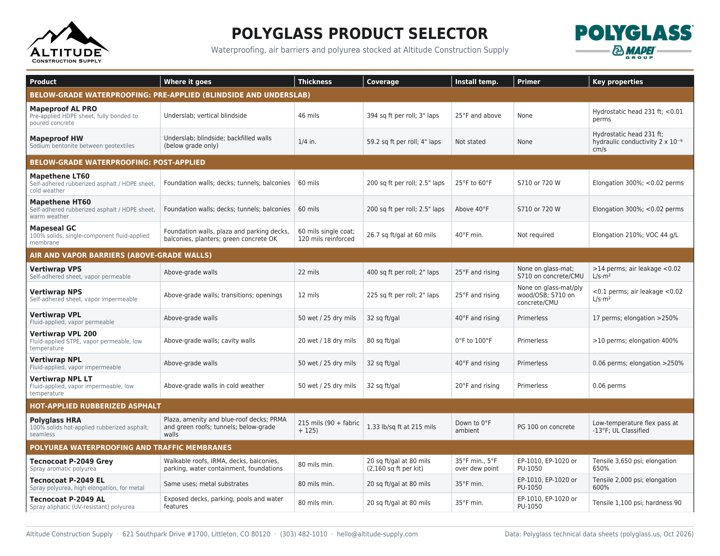

Polyglass Waterproofing and air barrier calculator
Pick the product type, then the Polyglass system, and enter the area. Add detail, flashing and waterstop lengths to include the accessories.
Coverage rates are from Polyglass's current data sheets. Sheet goods are figured on gross roll area, so set the laps and waste allowance to suit the layout.
Polyglass material needed
Pick a system and enter the area to see the material needed.
Estimates only. Actual usage depends on substrate profile, layout, laps, detailing and site conditions. Always confirm with Polyglass's current data sheets and installation instructions.

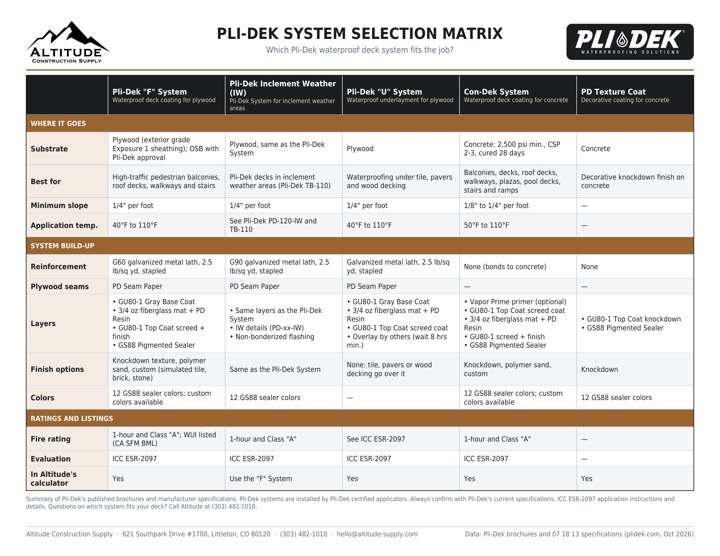

Pli-Dek Pli-Dek decorative waterproofing and concrete coatings calculator
Choose a Pli-Dek system and enter the deck area. We'll list every product by coat and total up what to order.
Used to figure PD Seam Paper (300 ft per roll).
| Product | Coverage |
|---|---|
| Preparation & base | |
| Metal Lath | 17 sq ft/sheet |
| Staples | 833 sq ft/box |
| GU80-1 Gray Base Powder | 30 sq ft/bag |
| GU80-1 Liquid Admixture | 150 sq ft/pail |
| Fiberglass & resin | |
| 50" Fiberglass Mat | 1,900 sq ft/roll |
| PD Resin | 250 sq ft/pail |
| Screed coat | |
| GU80-1 White Top Coat Powder | 125 sq ft/bag |
| GU80-1 Liquid Admixture | 700 sq ft/pail |
| Knock-down coat | |
| GU80-1 White Top Coat Powder | 175 sq ft/bag |
| GU80-1 Liquid Admixture | 700 sq ft/pail |
| Color seal | |
| GS88-1 Sealer | 325 sq ft/pail |
- Flashing and caulking not included.
- Two coats of sealer may be necessary.
Pli-Dek order quantities
Choose a system and enter the square footage to see the products you'll need.
Estimates only. Based on Pli-Dek's published take-off coverage rates. Coverages vary with substrate, texture and application, so always double-check quantities before ordering. Flashing, caulking and accessories are not included.
Need help choosing between Pli-Dek systems? Talk to our team.

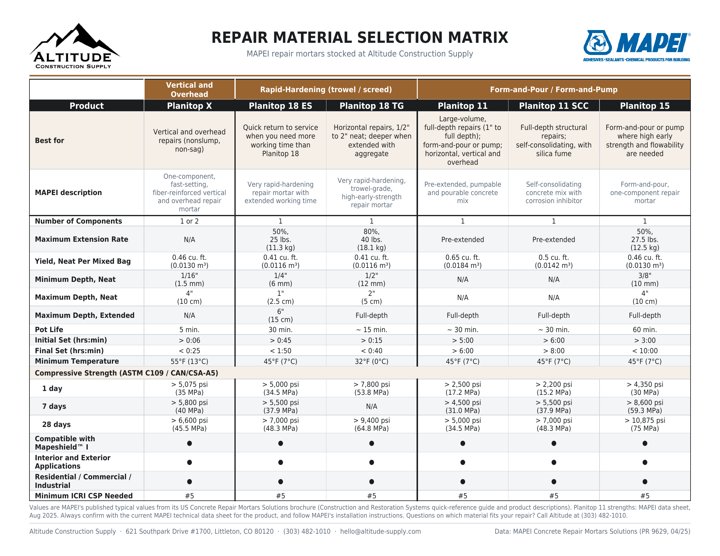

MAPEI Repair mortar calculator
Choose a MAPEI repair mortar, then enter the repair area and the average depth. Add a repair for each mortar, area or depth on the job; we'll total the volume and bags for each mortar on one sheet.
Vertical and overhead repair mortar. Yield 0.46 cu ft per bag; 1/16" to 4" (Up to 2" overhead).
Add a repair for each area, depth or mortar on the job. Tip: you can type fractions like 1/2 or 1 1/4, or decimals like 0.75.
MAPEI mortar needed
Pick a mortar, then enter the repair area and average depth. Add another repair for each different mortar, area or depth.
Estimates only. Yields are from MAPEI's published product literature. Actual usage depends on the true repair depth, surface profile, formwork and placement method, so measure carefully and allow for waste. Confirm application limits on the MAPEI technical data sheet.
Not sure which mortar fits the repair? Ask our team.
Corrosion protection
Patching over corroding steel isn't the end of it: rust can keep working around the edges of a new repair and start the next spall. Clean the steel, protect it with Mapefer 1K and Mapeshield I zinc anodes as the design calls for, then place the repair mortar.

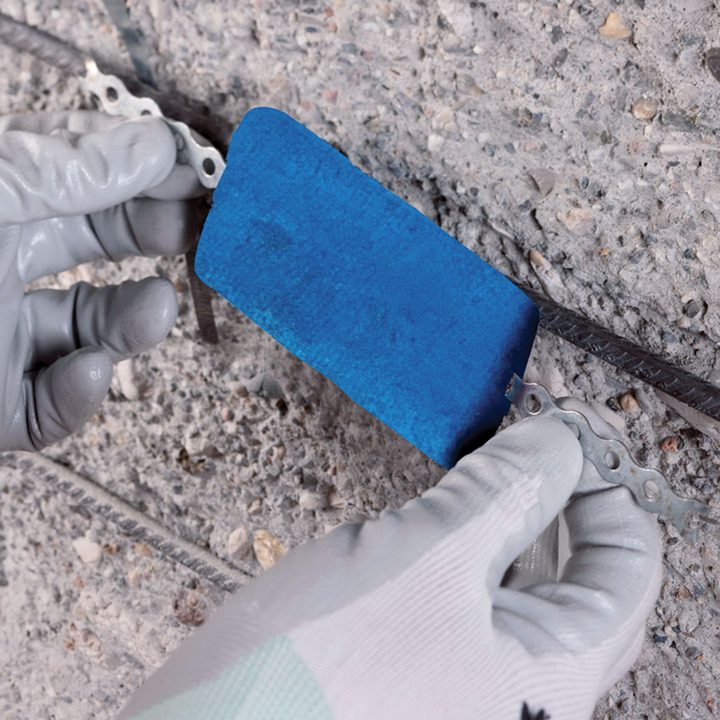

Mapeshield I
Pure zinc galvanic anodes
Sacrificial zinc anodes tied to the reinforcing steel at the edge of a repair. The zinc corrodes instead of the rebar, helping stop new corrosion around the edges of patches. For existing structures with chloride-induced corrosion and new elements exposed to chlorides.
- Six sizes: 70, 105, 10/10, 10/20, 30/10, 30/20 (70 to 450 g of zinc)

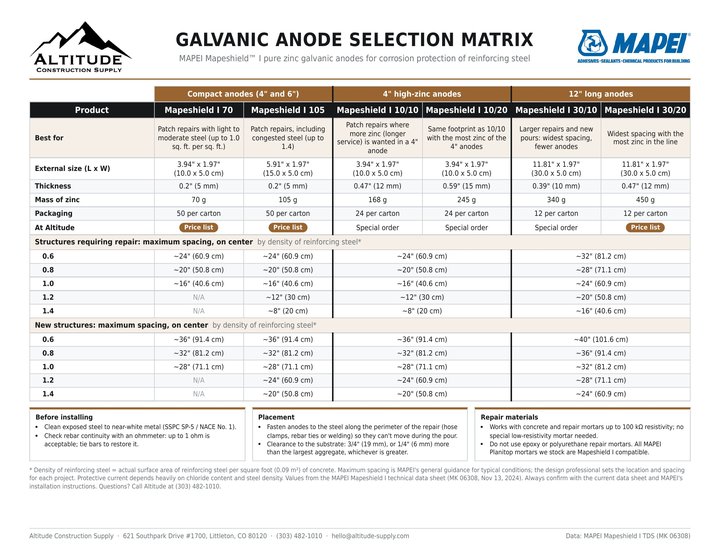

- Spacing from about 8" to 40" on center, by steel density (see the selection matrix)
- Works with concrete and repair mortars up to 100 kΩ; no special low-resistivity mortar
- Do not use with epoxy or polyurethane repair mortars

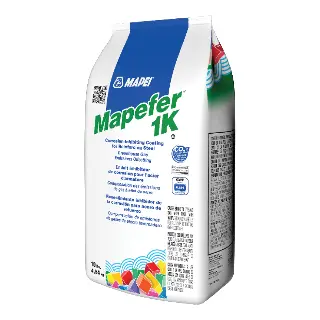

Mapefer 1K
Corrosion-inhibiting coating for reinforcing steel
One-component, cementitious rebar coating with corrosion inhibitors. Brushed onto exposed steel after it is cleaned to near-white metal, before the repair mortar goes on.
- 10 lb bag (2 per carton); mix with 1 to 1.2 qts of water
- Two brush coats of 1/32" (2 to 24 hours apart)
- About 15 to 18 sq ft per bag flat, or 45 lf of #4 / 30 lf of #5 / 22 lf of #8 bar
- Repair mortar after 6 hours (73°F) and up to 14 days later; 45°F to 95°F
Mapefer 1K and anode calculator
Bags of Mapefer 1K from the bar you'll coat, and anodes and cartons from your patch sizes, anode and steel density, using MAPEI's data sheet coverage and spacing.
Mapefer 1K rebar coating
Linear feet of exposed bar to coat, by bar size (two 1/32" coats, MAPEI's coverage per 10 lb bag). Leave blank if you're not using it.
Flat surfaces use 15 sq ft per bag, the low end of MAPEI's 15 to 18. Bar sizes #4 to #8 are in MAPEI's table; for other sizes, ask our team.
Mapeshield I galvanic anodes
About 0.33 sq ft of steel per sq ft of concrete. Use 0.6 in MAPEI's table (rounded up, for closer spacing).
Our quick estimate, not MAPEI's: bar surface area (pi x bar diameter / spacing) for each direction and mat that the anodes connect to. The engineer of record has the final say.
Anodes go around the perimeter of each patch. Enter each patch size once, with how many of that size.
Corrosion protection needed
Enter linear feet of bar for Mapefer 1K, and patch sizes or runs for the Mapeshield I anodes.

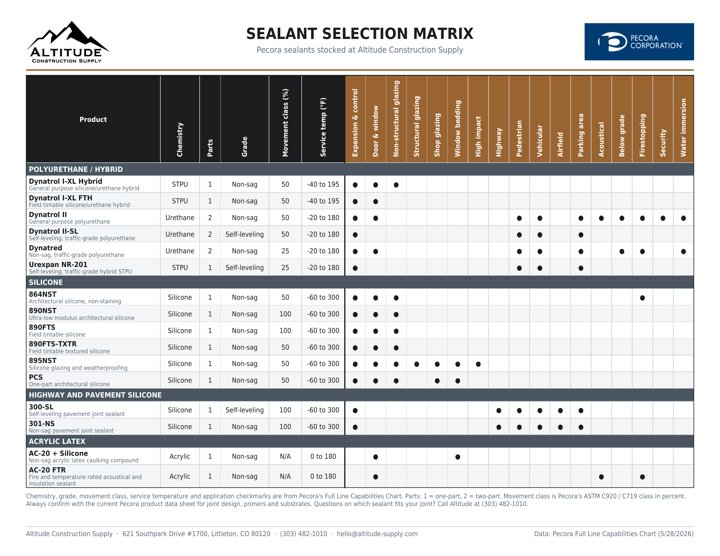

Pecora Joint sealant calculator
Pick a Pecora sealant, then enter each joint size and its total length. Add more rows if the job has joints of different sizes.
Pick a product to see only the package sizes it comes in.
Joint depth is set at half the width, at least 1/4" (Pecora's minimum) and no more than 1/2" deep. Bead diameters can be typed as fractions like 3/8 or decimals like 0.375.
Estimated material
Enter a joint size and length to see how much sealant you need.
Estimates only. Actual usage depends on the joint profile, backer rod placement, tooling and site conditions. Always confirm joint design and coverage with the manufacturer's product data sheet.
Working with Pecora sealants? Pecora also offers its own sealant calculator, including primer coverage.

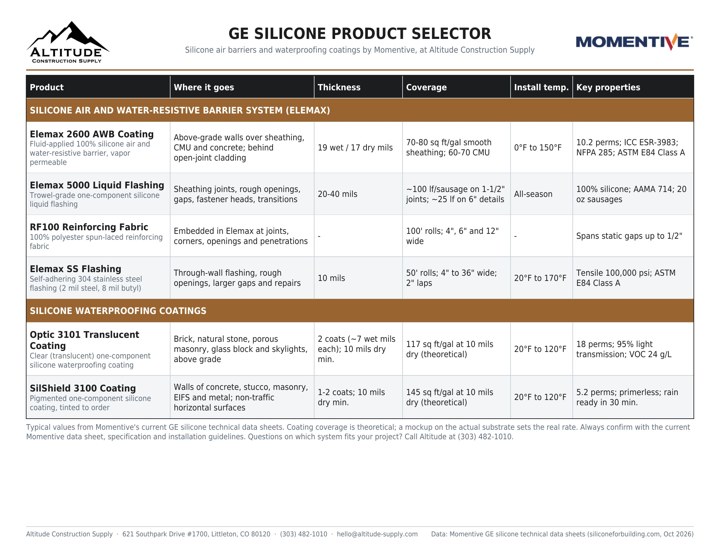

Momentive GE silicone air barriers and waterproofing calculator
Pick the silicone air barrier or the silicone waterproofing coating, then enter the area. Add joint, opening and flashing lengths to include the Elemax accessories.
Coverage rates are from Momentive's current GE silicone data sheets, using the low end of each range. A mockup on the actual substrate sets the real rate.
GE silicone material needed
Pick a system and enter the area to see the material needed.
Estimates only. Actual usage depends on the substrate, application equipment, detailing and site conditions. Momentive recommends a mockup to set the coverage rate. Always confirm with Momentive's current data sheets and specifications.

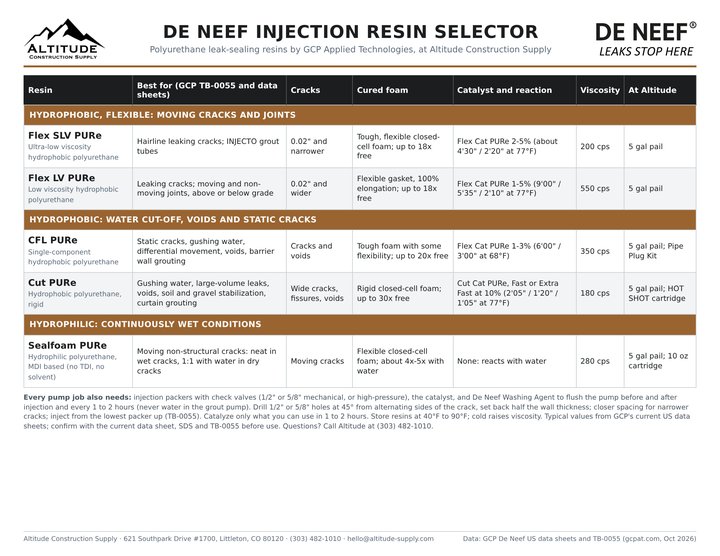

De Neef De Neef crack injection calculator
Stop leaking cracks and joints in basements, tunnels, vaults, parking structures and foundations. Pick the De Neef resin, enter the cracks, then check the installation accessories before you add it to your cart.
Resin
Best for: Leaking cracks 0.02" and wider; moving and non-moving joints, above or below grade. Flexible gasket-like foam (100% elongation); up to 18x free expansion.
End of reaction about 5'35" at 77°F (2%). Catalyze only what you can inject in 1 to 2 hours.
Leaking cracks and joints
Enter each crack or joint (or a group of similar ones as one total length).
Packers and pump
TB-0055: drill at 45° from alternating sides of the crack, set back half the wall thickness so the hole meets the crack at mid-depth; closer spacing for narrower cracks. Our default spacing is 6" for hairline, 8" up to 1/16" and 12" for wider cracks; adjust to what you see.
GCP doesn't publish resin per foot. Our planning math: the crack itself (length x thickness x the top of the width range) plus the drill holes, then this allowance for honeycombing, voids and resin that travels behind the wall. Raise it for poor concrete or active water.
Injection material needed
Pick a resin and enter the length of the leaking cracks to see the material needed.
Installation accessories: check before you add to cart
Everything an injection job needs besides the resin. The first three are figured from your job; tick anything else you need and set the quantity.
- Mechanical packer 1/2" (yellow)bags
- Washing Agent (5 gal pail)pail
- unit
- box
- pail
- pack
- Dry oakum (8 strand rope) (lf)lf
- Pipe Plug Kit (kit)kit
- Albion 10 oz cartridge gun (B-Line 12:1) (each)unit
Not included: Injection packers (ports). You'll be asked before adding to the cart.
Also on site (not on our price list): Injection pump (TB-0055: airless grout pump, with a separate pump for water); Heavy-duty drill and 12" to 18" bits matched to the packer size; Clean 5 gal buckets, 4 or 6 mil poly sheeting, rags and duct tape; Face shields, safety glasses and latex or nitrile gloves.
TB-0055 Standard application procedures: sealing leaking cracks or joints with groutsFlex LV PURe data sheet
Estimates only. Resin use depends on the crack, the concrete, voids behind the wall and water pressure. Follow GCP's data sheets and Technical Bulletin TB-0055, and call us for gushing water or anything unusual.
Project submittals
Build a submittal package in a few minutes. Pick the products going on your job and we'll put together one PDF with an Altitude cover letter, an index and the current product data sheet, installation instructions (where the manufacturer publishes them) and SDS for each product, plus any other documents you add from your computer, ready to send to the architect, engineer or GC.
Loading...
More calculators coming
We're adding estimating tools for more of our core products. Need help with a takeoff now? Send us your plans or call (303) 482-1010.
